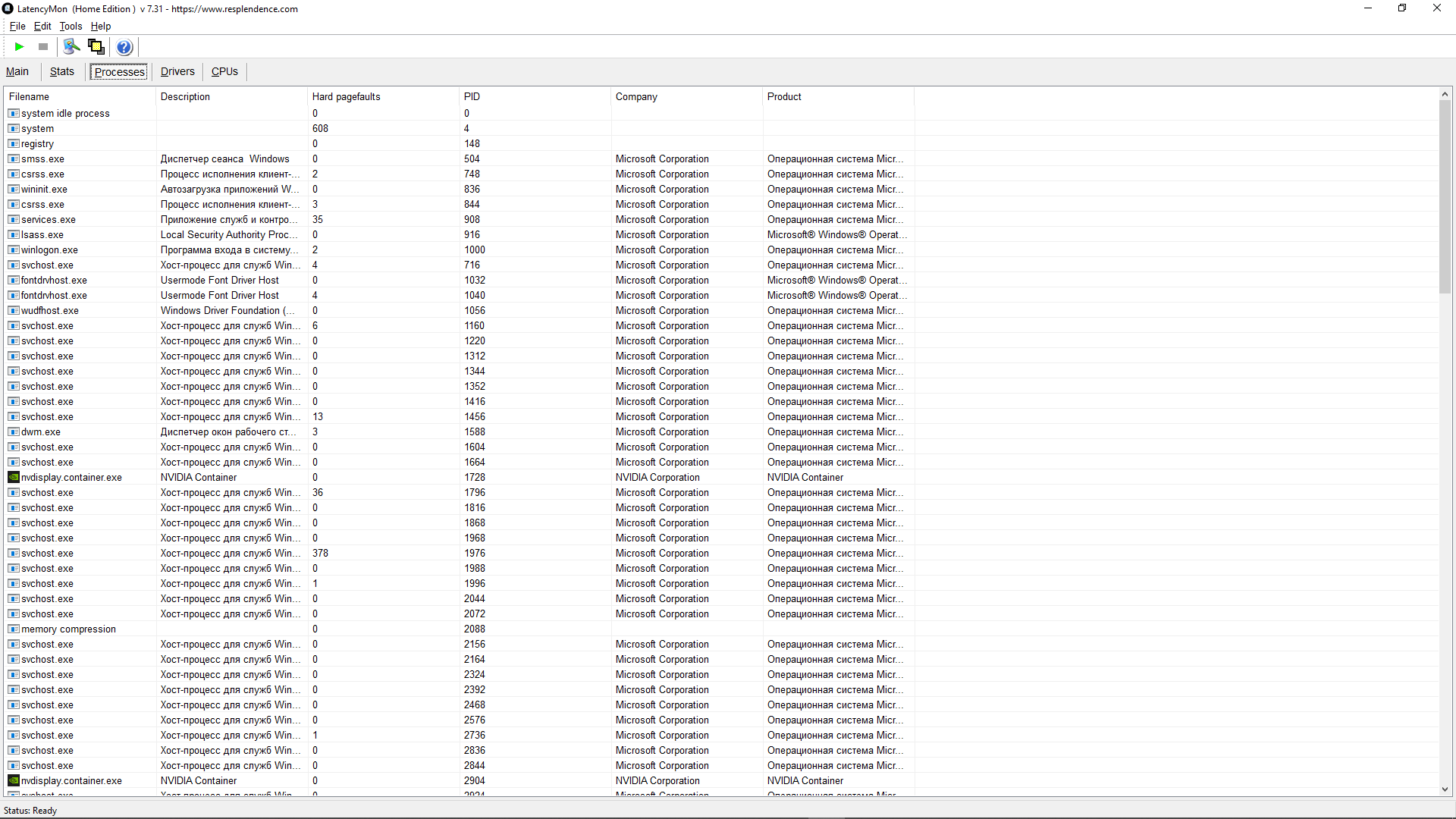

В момент лага в Latency mon, я заметил, video.ui.exe - вызывает 454 hard pagefault
Process with highest pagefault count: video.ui.exe
Total number of hard pagefaults 454
Hard pagefault count of hardest hit process: 378
Number of processes hit: 10
Вот полный отчет:

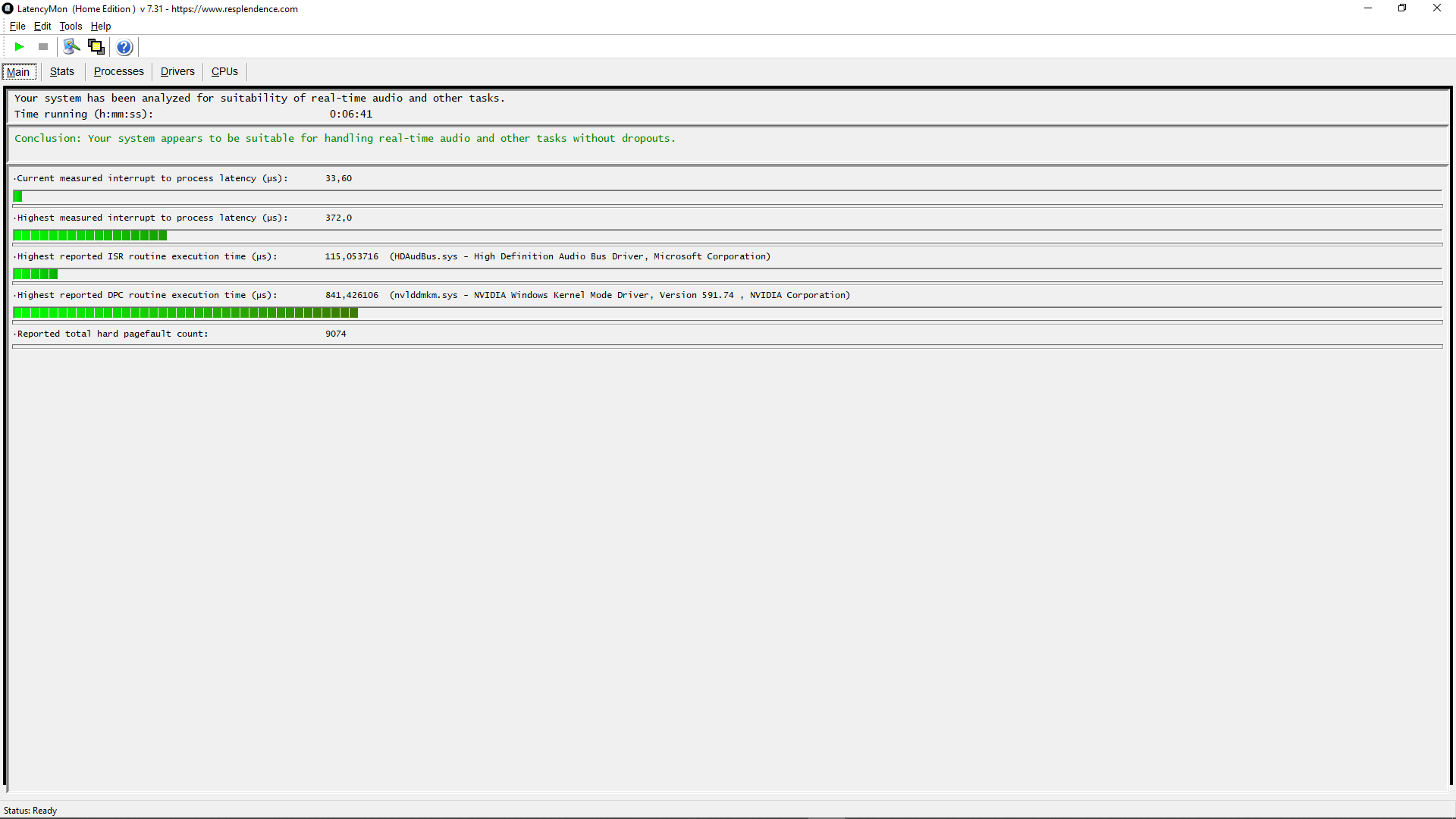

CONCLUSION
Your system appears to be suitable for handling real-time audio and other tasks without dropouts.
LatencyMon has been analyzing your system for 0:01:17 (h:mm:ss) on all processors.
SYSTEM INFORMATION
Computer name: DESKTOP-1HJO7OV
OS version: Windows 10, 10.0, version 2009, build: 19045 (x64)
Hardware: B450M H, Gigabyte Technology Co., Ltd.
BIOS: BIOS Date: 05/11/22 20:12:25 Ver: 05.00011
CPU: AuthenticAMD AMD Ryzen 5 3600 6-Core Processor
Logical processors: 12
Processor groups: 1
Processor group size: 12
RAM: 16306 MB total
CPU SPEED
Reported CPU speed (WMI): 360 MHz
Reported CPU speed (registry): 3593 MHz
Note: reported execution times may be calculated based on a fixed reported CPU speed. Disable variable speed settings like Intel Speed Step and AMD Cool N Quiet in the BIOS setup for more accurate results.
MEASURED INTERRUPT TO USER PROCESS LATENCIES
The interrupt to process latency reflects the measured interval that a usermode process needed to respond to a hardware request from the moment the interrupt service routine started execution. This includes the scheduling and execution of a DPC routine, the signaling of an event and the waking up of a usermode thread from an idle wait state in response to that event.
Highest measured interrupt to process latency (µs): 959,90
Average measured interrupt to process latency (µs): 4,238134
Highest measured interrupt to DPC latency (µs): 957,60
Average measured interrupt to DPC latency (µs): 1,418049
REPORTED ISRs
Interrupt service routines are routines installed by the OS and device drivers that execute in response to a hardware interrupt signal.
Highest ISR routine execution time (µs): 79,013638
Driver with highest ISR routine execution time: HDAudBus.sys - High Definition Audio Bus Driver, Microsoft Corporation
Highest reported total ISR routine time (%): 0,000565
Driver with highest ISR total time: Wdf01000.sys - Среда выполнения платформы драйвера режима ядра, Microsoft Corporation
Total time spent in ISRs (%) 0,000855
ISR count (execution time <250 µs): 11646
ISR count (execution time 250-500 µs): 0
ISR count (execution time 500-1000 µs): 0
ISR count (execution time 1000-2000 µs): 0
ISR count (execution time 2000-4000 µs): 0
ISR count (execution time >=4000 µs): 0

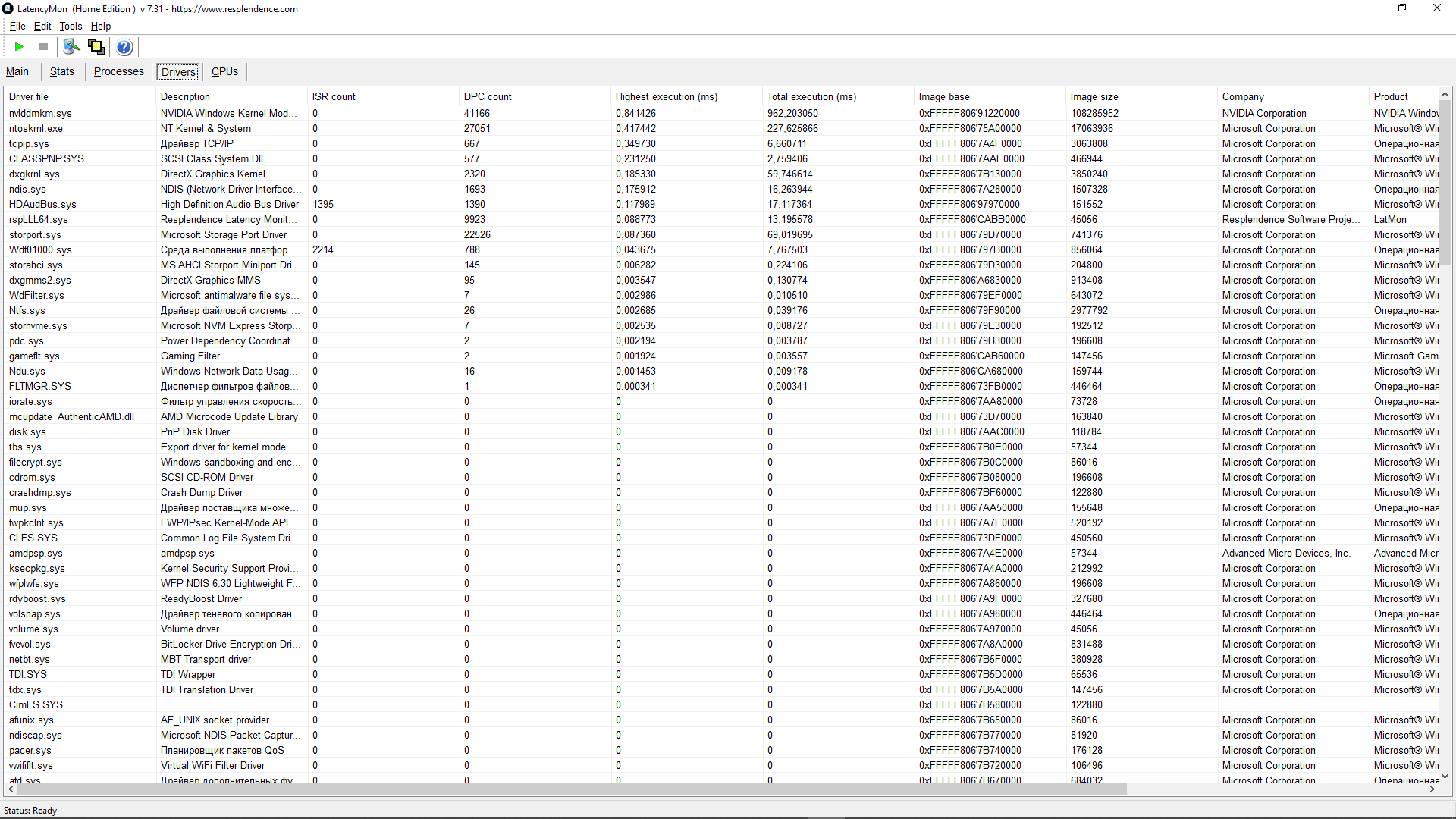

REPORTED DPCs
DPC routines are part of the interrupt servicing dispatch mechanism and disable the possibility for a process to utilize the CPU while it is interrupted until the DPC has finished execution.
Highest DPC routine execution time (µs): 834,943501
Driver with highest DPC routine execution time: nvlddmkm.sys - NVIDIA Windows Kernel Mode Driver, Version 591.74 , NVIDIA Corporation
Highest reported total DPC routine time (%): 0,020331
Driver with highest DPC total execution time: nvlddmkm.sys - NVIDIA Windows Kernel Mode Driver, Version 591.74 , NVIDIA Corporation
Total time spent in DPCs (%) 0,046442
DPC count (execution time <250 µs): 47153
DPC count (execution time 250-500 µs): 0
DPC count (execution time 500-10000 µs): 14
DPC count (execution time 1000-2000 µs): 0
DPC count (execution time 2000-4000 µs): 0
DPC count (execution time >=4000 µs): 0
REPORTED HARD PAGEFAULTS
Hard pagefaults are events that get triggered by making use of virtual memory that is not resident in RAM but backed by a memory mapped file on disk. The process of resolving the hard pagefault requires reading in the memory from disk while the process is interrupted and blocked from execution.
NOTE: some processes were hit by hard pagefaults. If these were programs producing audio, they are likely to interrupt the audio stream resulting in dropouts, clicks and pops. Check the Processes tab to see which programs were hit.
Process with highest pagefault count: video.ui.exe
Total number of hard pagefaults 454
Hard pagefault count of hardest hit process: 378
Number of processes hit: 10
PER CPU DATA
CPU 0 Interrupt cycle time (s): 3,238458
CPU 0 ISR highest execution time (µs): 79,013638
CPU 0 ISR total execution time (s): 0,004551
CPU 0 ISR count: 4583
CPU 0 DPC highest execution time (µs): 834,943501
CPU 0 DPC total execution time (s): 0,360755
CPU 0 DPC count: 38316
CPU 1 Interrupt cycle time (s): 1,695799
CPU 1 ISR highest execution time (µs): 2,524910
CPU 1 ISR total execution time (s): 0,000284
CPU 1 ISR count: 421
CPU 1 DPC highest execution time (µs): 68,332869
CPU 1 DPC total execution time (s): 0,007017
CPU 1 DPC count: 544
CPU 2 Interrupt cycle time (s): 0,270739
CPU 2 ISR highest execution time (µs): 0,0
CPU 2 ISR total execution time (s): 0,0
CPU 2 ISR count: 0
CPU 2 DPC highest execution time (µs): 65,547453
CPU 2 DPC total execution time (s): 0,003490
CPU 2 DPC count: 360
CPU 3 Interrupt cycle time (s): 0,237564
CPU 3 ISR highest execution time (µs): 0,0
CPU 3 ISR total execution time (s): 0,0
CPU 3 ISR count: 0
CPU 3 DPC highest execution time (µs): 11,572502
CPU 3 DPC total execution time (s): 0,000469
CPU 3 DPC count: 105
CPU 4 Interrupt cycle time (s): 0,079498
CPU 4 ISR highest execution time (µs): 0,0
CPU 4 ISR total execution time (s): 0,0
CPU 4 ISR count: 0
CPU 4 DPC highest execution time (µs): 85,215697
CPU 4 DPC total execution time (s): 0,003003
CPU 4 DPC count: 313
CPU 5 Interrupt cycle time (s): 0,069929
CPU 5 ISR highest execution time (µs): 0,0
CPU 5 ISR total execution time (s): 0,0
CPU 5 ISR count: 0
CPU 5 DPC highest execution time (µs): 23,215141
CPU 5 DPC total execution time (s): 0,000214
CPU 5 DPC count: 79
CPU 6 Interrupt cycle time (s): 0,702218
CPU 6 ISR highest execution time (µs): 0,0
CPU 6 ISR total execution time (s): 0,0
CPU 6 ISR count: 0
CPU 6 DPC highest execution time (µs): 415,497913
CPU 6 DPC total execution time (s): 0,027532
CPU 6 DPC count: 2941
CPU 7 Interrupt cycle time (s): 1,691627
CPU 7 ISR highest execution time (µs): 0,0
CPU 7 ISR total execution time (s): 0,0
CPU 7 ISR count: 0
CPU 7 DPC highest execution time (µs): 188,306151
CPU 7 DPC total execution time (s): 0,001730
CPU 7 DPC count: 444
CPU 8 Interrupt cycle time (s): 1,597095
CPU 8 ISR highest execution time (µs): 24,677985
CPU 8 ISR total execution time (s): 0,002675
CPU 8 ISR count: 6005
CPU 8 DPC highest execution time (µs): 359,629279
CPU 8 DPC total execution time (s): 0,016999
CPU 8 DPC count: 2465
CPU 9 Interrupt cycle time (s): 1,493047
CPU 9 ISR highest execution time (µs): 11,071528
CPU 9 ISR total execution time (s): 0,000080
CPU 9 ISR count: 122
CPU 9 DPC highest execution time (µs): 41,510715
CPU 9 DPC total execution time (s): 0,002275
CPU 9 DPC count: 551
CPU 10 Interrupt cycle time (s): 1,644040
CPU 10 ISR highest execution time (µs): 30,479265
CPU 10 ISR total execution time (s): 0,000160
CPU 10 ISR count: 220
CPU 10 DPC highest execution time (µs): 409,025327
CPU 10 DPC total execution time (s): 0,005459
CPU 10 DPC count: 898
CPU 11 Interrupt cycle time (s): 1,681865
CPU 11 ISR highest execution time (µs): 1,332591
CPU 11 ISR total execution time (s): 0,000171
CPU 11 ISR count: 295
CPU 11 DPC highest execution time (µs): 45,498469
CPU 11 DPC total execution time (s): 0,001135
CPU 11 DPC count: 151
